If you’re building a golf simulator and want to add swing cameras, you’ll quickly realize there’s a huge range of options. You can spend almost nothing using your phone, or you can spend over $1,000 per camera on high-end systems.
Most people are looking for something in the middle. That’s where the Kayeton swing cameras come in.
These are 120 FPS USB cameras that have become popular for home simulators because they’re affordable, simple to use, and actually get the job done. I’ve been using them regularly, and for most setups, they’re what I reach for first.
This isn’t just a spec breakdown. This is how they actually perform in a real garage simulator, what works well, what doesn’t, and whether they’re worth buying.
Table of Contents
- What Are Kayeton Swing Cameras?
- Real-World Performance (What You Actually Get)
- 120 FPS vs 60 FPS (Why It Matters)
- Setup and Ease of Use
- USB Cables and What You’ll Need
- Lens Options (And Why They Matter)
- Camera Placement (What Works Best)
- Mounting Options (Tripods vs Stands)
- Lighting Requirements (Important)
- Software Compatibility
- How They Compare to More Expensive Cameras
- Who Should Buy Kayeton Swing Cameras?
- Who Might Want Something Else?
- Final Verdict
- Bottom Line

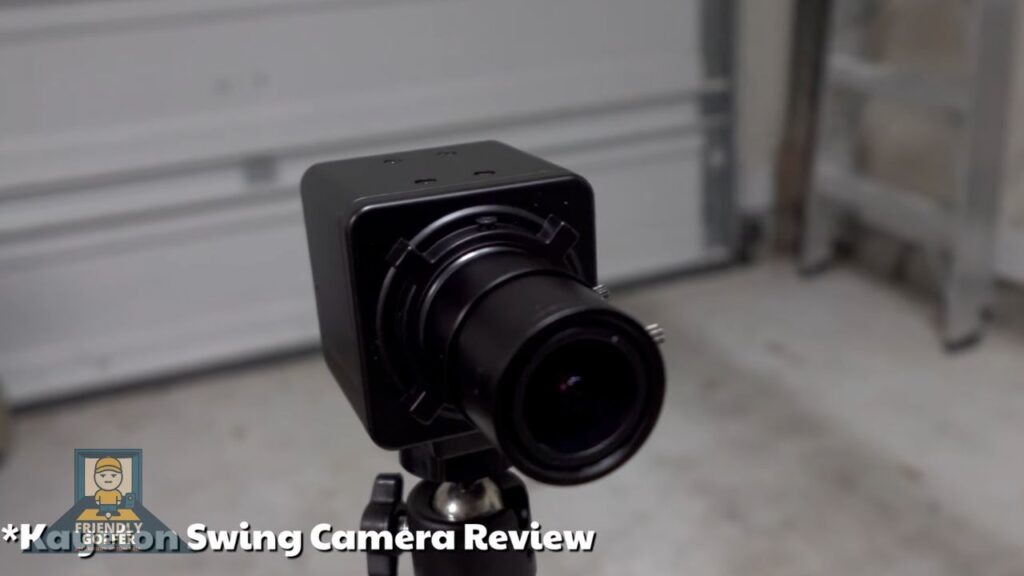

What Are Kayeton Swing Cameras?
Kayeton cameras are plug-and-play USB cameras that can be used with golf simulator software for swing recording and analysis.
- Global Shutter High Speed 120fps at 1280 x 720p USB Camera with Mini Case with CS mount 2.8-12mm varifocal lens use for 8-12 feet
- High speed USB 2.0 interface
- High quality image
- UVC compliance for use in OS Windows, Linux, Android, Mac
- OTG support
The key specs that matter:
- 720p resolution
- 120 frames per second
- Driverless USB connection
- Interchangeable CS mount lens
That combination is exactly what you want for a home simulator. The resolution is solid, but more importantly, the 120 FPS allows for smooth slow-motion playback.
These cameras are also widely believed to be the same hardware used in some branded swing camera systems that cost significantly more (Foresight Sports).
It’s not secret that the Foresight cameras are actually Kayeton brand but we don’t know the specific model.
Real-World Performance (What You Actually Get)
The biggest question with any swing camera is simple. Does it actually help you see your swing better?
With the Kayeton cameras, the answer is yes.
At full speed, the video looks clean and usable. But where they really matter is in slow motion. At 120 FPS, you can slow your swing down significantly and still get smooth playback.
That’s the difference between guessing and actually seeing what’s happening at impact.
You can clearly track your body movement, your hand position, and the general shape of your swing. The club head can still be a little hard to see at times, especially with a driver, but that’s true for most cameras in this price range.
With irons, it’s much easier to see the club face and positions throughout the swing.
120 FPS vs 60 FPS (Why It Matters)
If you’re deciding between camera options, this is where Kayeton stands out.
At 120 FPS, you can slow your swing down to around a quarter speed and still have smooth video. That makes a big difference when you’re trying to analyze positions.
At 60 FPS, you can still slow things down, but not nearly as much. Once you push it too far, the video starts to look choppy.
That’s why these cameras hit a sweet spot. They give you true slow-motion capability without stepping into high-end pricing.
Setup and Ease of Use
One of the best things about these cameras is how easy they are to set up.
They are truly plug and play. You plug them into your computer, open your simulator software, and they show up as available cameras.
There’s no complicated installation process, no special drivers, and no extra hardware required.
That simplicity matters more than you might think. The easier your setup is, the more likely you are to actually use it every time you practice.
USB Cables and What You’ll Need
One thing to be aware of is cable length.
The included USB cable is not very long. In a typical simulator setup, especially in a garage, it’s almost never enough to reach your computer cleanly.
You’ll almost definitely need USB extension cables.
In most setups:
- A 10 ft cable can work for shorter runs
- A 15 ft cable is usually safer and more flexible
It’s a small detail, but it’s something you’ll want to plan for ahead of time.
- USB Extension Cable 15ft Long : The extra long usb extender cable can extend the USB port of a Wall charger/PC/Windows tablet and most devices on any USB-enabled device, such as smart phone, USB flash drives, security camera, USB WiFi Adapter, keyboard, mouse, printers, game controller and so on. Full USB 2.0 Capacity Provides a 480 Mbps data transfer speed and a normal charging speed.
- ?15ft Long Extension Cable?This long 15ft USB extension cable is long enough for daily life and office work; With this USB 3.0 extension cable, you will no longer squeeze yourself in an uncomfortable position because of your short cables, you can lie on the sofa and sit wherever you’d like; No need to bend down under the desk or behind the TV to plug some USB peripherals anymore!
- 10FT PERFECT LENGTH: With the perfect 10ft length, you can play the game freely ,or lie on the sofa to use your devices for video while you are charging.What’s more,you can also extend your surveillance camera (please make sure the camera interface is USB A port). Perfect Length for your easy life-use.
Lens Options (And Why They Matter)
The Kayeton cameras come with a standard 2.8mm – 12mm lens, which works well for most setups.
But one of the biggest advantages of these cameras is that you can swap lenses easily.
If you’re working in a tighter space, switching to a 2.1mm wide-angle lens can help you capture more of your swing without moving the camera farther back.
This is especially useful for the down-the-line view, where you want to make sure the entire club stays in frame, even with a driver.
It’s a small upgrade, but it can make a big difference depending on your setup.
If you look for another lens you want to make sure that it’s a CS Mount lens. This is the exact one that I purchased.
- Crystal Clear Image Quality: With its 2.1mm focal…
- Wide Angle Perspective: This CCTV camera lens…
- Premium Durability: Made from aluminum alloy…
- Versatile Applications: This CS Mount Lens is…
- Effortless Installation: Installing and removing…
Camera Placement (What Works Best)
I’ve found a pretty consistent setup that works well with these cameras.
For the face-on camera, placing it around 4 to 5 feet from the ball works well. You’ll capture your body, hands, and impact position clearly, which is the main goal of that view. If you have more space you can definitely move it farther away to capture the entire club as well.
For the down-the-line camera, I usually set it up around 7 feet from the ball. That gives enough room to capture the full swing, especially when using the wider, 2.1mm lens I added.
The most important detail is alignment.
Both cameras should be placed in line with your hands at address and set at roughly the same height. That keeps your swing looking natural and makes the footage much more useful.
Mounting Options (Tripods vs Stands)
You can mount these cameras on standard tripods, but that’s not always the best option in a simulator.
Tripods take up a lot of floor space. In a garage setup, that can get annoying quickly.
A better option is a projector-style stand with a single pole and round base. It takes up less space and keeps things cleaner. Again, the exact ones I purchased are below but you can search “projector stands” on amazon to find lots of options.
- Widely applicable stand–Equipped with a standard…
- Multifunctional Mount Stand bottom is a round iron…
- 16.5-34.6inch Height Adjustable–Designed with an…
- The ballhead at the top of the stand provides a…
- Package list: 1 x Heavy Base; 1 x Telescopic…
They’re not quite as stable as tripods, but for most setups, they work really well.
Lighting Requirements (Important)
Lighting is one of the biggest factors in how these cameras perform.
Because they shoot at a high frame rate, they need more light than you might expect. Without enough lighting, the image can look dark or grainy.
The fix is simple. Add more light.
Overhead lighting aimed at your hitting area works well. Track lighting is even better if you can position it correctly.
You don’t need a professional setup, but you do need enough light for the camera to work properly.
- Remote Controlled & Super Bright – With the…
- Timer Function – You can use the handy remote…
- Brightness Dimmable – The brightness of the…
- Lighting Direction Adjustable – The light heads of…
- AC Adapter Powered & Easy Installation – The…
Software Compatibility
One of the biggest advantages of Kayeton cameras is that they work with pretty much anything that supports USB cameras.
That includes:
- FSX 2020
- FSX Play
- ProTeeVX
- Uneekor View (with some limitations)
Because they’re driverless USB cameras, they’re very flexible. You’re not locked into a specific ecosystem.
If you’re using ProTeeVX, this is actually the exact setup I use most of the time.
How They Compare to More Expensive Cameras
This is where Kayeton cameras really stand out.
Do more expensive cameras look better? Yes, a little.
You’ll get:
- Slightly sharper image
- Better low-light performance
- Possibly higher frame rates
But the difference is not as big as you might expect.
In most cases, Kayeton cameras give you about 80 to 90 percent of the performance at a fraction of the cost.
For most golfers, that’s the right trade-off.
Who Should Buy Kayeton Swing Cameras?
These cameras are a great fit if:
- You want a dedicated swing camera setup
- You care about slow-motion playback
- You want something affordable and reliable
- You don’t want to be locked into one software ecosystem
They are especially good for garage simulators where space and budget both matter.
Who Might Want Something Else?
You might look at other options if:
- You want a fully integrated system like Uneekor
- You need advanced software features tied to specific cameras
- You’re building a high-end studio and want the absolute best image
If you fall into that category, a system like Uneekor Swing Optix may make more sense.
See my full review of Uneekor Swing Optix cameras for that type of setup.
Final Verdict
The Kayeton swing cameras are easily one of the best value options for a golf simulator.
They’re simple, affordable, and most importantly, they work.
You’re not getting perfect, studio-quality video. But you are getting smooth slow motion, reliable performance, and enough detail to actually improve your swing.
For most golfers, that’s exactly what you need.
If you’re trying to build a practical home setup without overspending, these are hard to beat.
Bottom Line
If you’re asking, “What swing cameras should I buy for my simulator?” this is the answer I give most people.
Start with Kayeton.
Get two cameras, set them up properly, add enough lighting, and you’ll have a setup that delivers real feedback every time you practice.
And if you ever decide to upgrade later, you’ll at least know exactly what you want and why.
If you have questions about setting these up in your space, feel free to reach out or check out the related guides below.
